Select Your Temperature Range
15~60°C

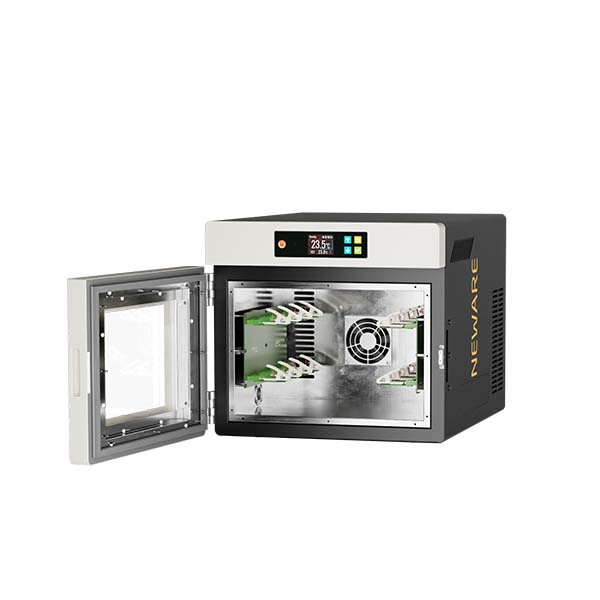

Mini Desktop All-in-one Chamber
With a simple LAN connection, you can start using this all-in-one chamber right away. Battery charge-discharge steps and temperature control can be set together in the same interface. Coin-cell clamps are removable
Popular Model Datasheets
0~60°C

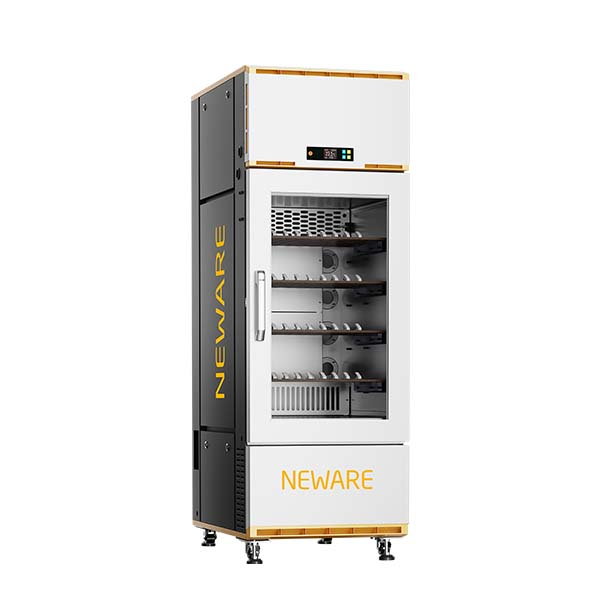

200L All-in-one Chamber
This all-in-one chamber integrates 20pcs battery testing control boards in the top section, which reduces a full rack of tester footprint by side, and no more messy wiring in the lab.
Popular Model Datasheets
0~60°C

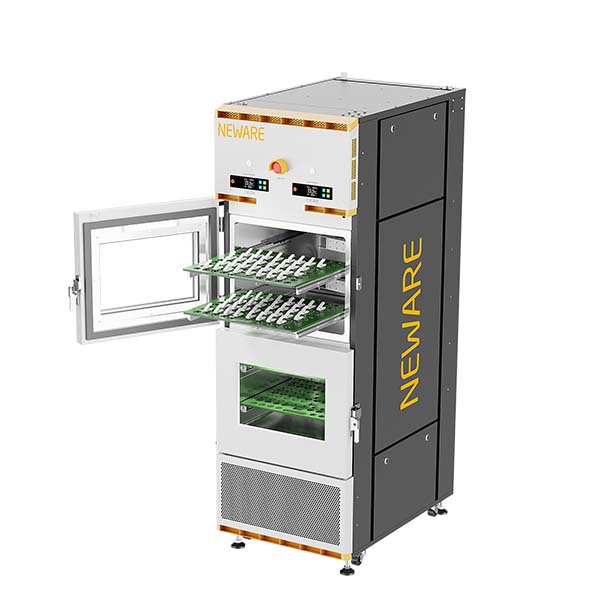

200L Dual Zone All-in-one Chamber
Want to have different temperature ranges set in one chamber? The dual-zone all-in-one chamber is a good option, which retains a compact channel capacity as well as provides the options of two control groups.
Download Datasheet
0~60°C

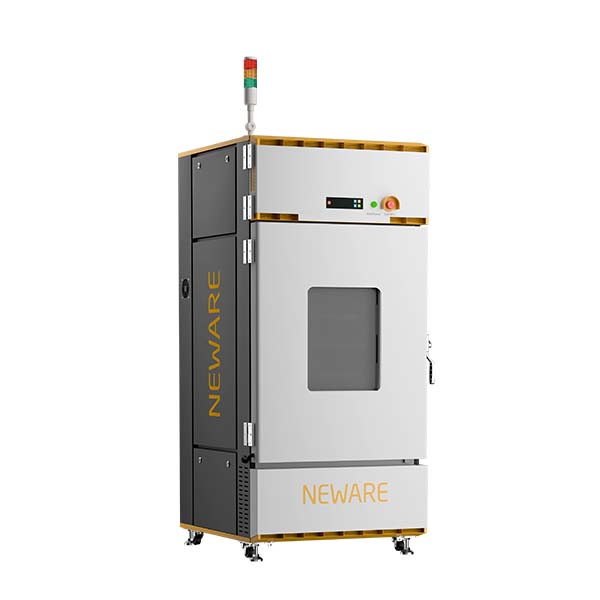

300L All-in-one Chamber
The higher working current generates more heat during testing. The 300L chamber is designed for larger cells in the test range of 5V12A.
Cooling method: compressor refrigeration
Inner Volume: 300L (W700mm×D500mm×H850mm)
Channel Capacity:
64~80 channels for 18650~21700 ≤12A
Need dimension of pouch cells to confirm
Download Datasheets
-40~150°C

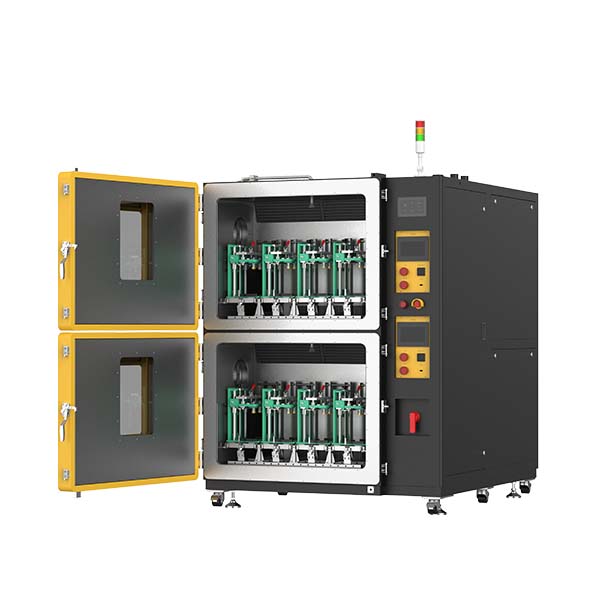

380L EV Cell All-in-one Chamber
High C-rate EV cells require a larger current charge-discharge and wider temperature range in performance tests.
In a traditional connection, the cables are thick and hard to turn in the chamber via lead holes. In the all-in-one design, cables are sorted, and fixtures can roll out easily for cell reloads.
